| Model Number: | Female Terminal Sleeves | Material: | Soft PVC |
|---|---|---|---|
| Shape: | Round Or Square | Temperature: | 105℃ |
| Application: | For Full Insulation Of Uninsulated Female Spade Connectors. | Surface Finishing: | Clean, Smooth, Transparent, No Bubble |
| High Light: | electrical wire end caps,plastic wire end caps |
||

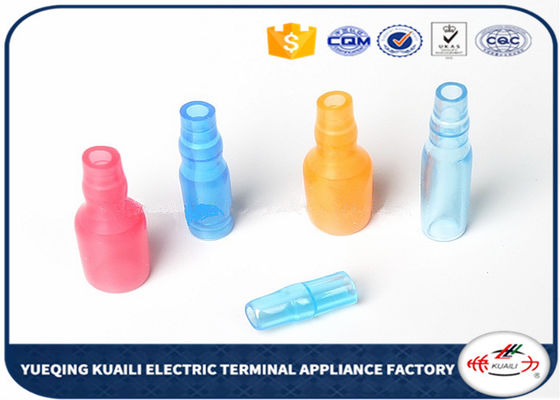

DJ Series Shur Plug type female terminal sleeves PVC terminal cover
female terminal sleeves Description:
The DJ series PVC wire connector sleeves are used for SURE Plug and its receptacle.
They are for flag-type wire terminals.
DJ series can be used with the following terminals:
Ordinary flag-type terminals
Positive-lock EX terminals (flag) (Tyco Electronics "AMP")
PS connector conducts (flag) (J.S.T.)
The design helps prevent dust and dirt from getting inside the sleeve.
| Item | Test Standard | Test Method | Test Result | |
| 1 | Appearance | Clean, Smooth, Transparent, No Bubble | Visual Inspection | Pass |
| 2 | Aging Test | 168Hrs@136℃ without aging | Aging Box | Pass |
| 3 | Insulation Resistance | DC 500V, Insulation Resistance R≥200MΩ | Insulation Tesistance Tester | Pass |
| 4 | Dielectric Withstand Voltage Test | AC 2500V/Min (5mA) No Breakdown |
Dielectric Withstand Voltage Tester | Pass |
| 5 | Corrosion Resistance | Company standard: Q/HT-2004 | Corrosion Device | Pass |
| 6 | Flammability Standard | UL 94V-0 | Flame Burning | Pass |
Our products are produced in a vast array of materials, in a wide variety of specifications such as temperature ranges, flammability, color, etc.
All our products are compliant with REACH & RoHS as well as the UL 94V-0 Flammability standard.
Quality is the most important factor that sets us apart from Chinese competition. We carry out strict quality control throughout the whole production process.
We test all raw materials to assure the compliance with REACH and RoHS. And we implement 5S management in our factory and we test 100% products before shipment.
In most cases, it is not difficult to distinguish ours from competing ones from the workmanship.
