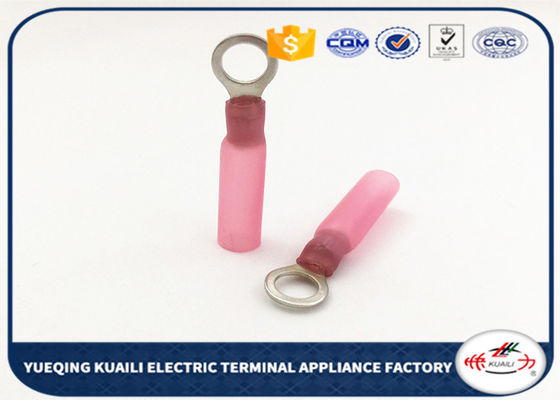

HR type insulated electrical heat shrink ring terminals Red HR1.25-5

Name: HR type insulated electrical heat shrink ring terminals Red HR1.25-5
Brand: KUAILI
SKU: heat shrink connector
Rating: 4.7 (149 reviews)

Large Image : HR type insulated electrical heat shrink ring terminals Red HR1.25-5

Product Details:

Place of Origin:	China
Brand Name:	KUAILI
Certification:	ROSH
Model Number:	heat shrink connector

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.325.819.8cm it depends on the goods.
Delivery Time:	5~30days According to the order quantity
Payment Terms:	D/A, D/P, T/T, L/C
Supply Ability:	50000 per week

Contact Now

Detailed Product Description

Product Name:	HR1.25-5	Insulation:	Heat Shrink PE
Color:	Red	Wire Range:	0.5-1.5mm2
Surface:	Tin Palting	Terminal Body:	Copper
Highlight:	heat shrink wire connectors , heat shrink solder connectors

HR type insulated Heat Shrinkable Ring electrical Terminals Red HR1.25-5

Applications

HR protects splicesfrom water and corrosion. Providing strain relief and against vibration in rugged environments, which excellently insulates and protects electronic connections. It offer long-term performance, easy installation, and a low installed cost, which is more reliable than conventional crimp terminals.

Characteristics:

*Shrinkage ratio 3:1

*Excellent stretch and mechanical damage resistance

*Ldeally translucent provides tensile strength

*High elasticity keeps steady performance

Operating temperature range

*Operating temperature : -55 degree centigrade ~125 degree centigrade

*Minimum shrink temperature 80 degree centigrade

*full recovery temperature : 130 degree centigrade

Item No.	Wire range mm2/Awg	Tab Size	Dimension (mm)					Insulation Color
Item No.	Wire range mm2/Awg	Tab Size	d1	d2	W	L	D	Insulation Color
HR 1.25-3	0.5-1.5mm2 22-16AWG	#4	1.7	3.2	5.7	28.5	4.8	Red
HRM 1.25-3.5		#6		3.7	6.6	31.5
HRS 1.25-4		#8		4.3	6.6	31.5
HRL 1.25-4		#8		4.3	8	31.5
HRS 1.25-5		#10		5.3	8	33.5
HRS 1.25-6		1/4		6.4	9.8	39.5
HR 1.25-6		1/4		6.4	11.6	36.5
HR 1.25-8		5/16		8.4	11.6	39.5
HR 1.25-10		3/8		10.5	13.6	43

HR type insulated electrical heat shrink ring terminals Red HR1.25-5 0

FAQ

1.we are derectly manufacturer of terminal connector without any traders
2.we supply 2 years gurantee for goods
3.we supply free samples
4.we supply OEM service
