Female Heat Shrink Wire Terminals Electrical Crimp Terminal 22-10 AWG

Name: Female Heat Shrink Wire Terminals Electrical Crimp Terminal 22-10 AWG
Brand: KUAILI
SKU: locking spade terminal
Rating: 4.5 (176 reviews)

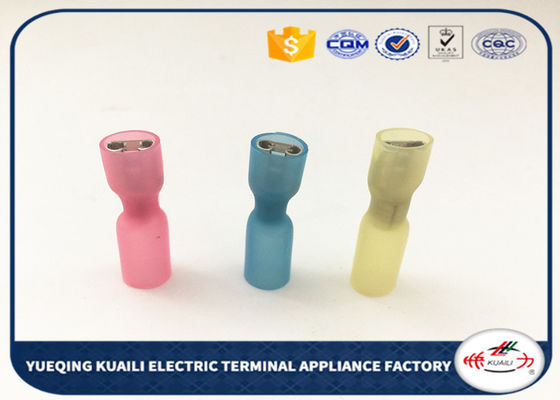

Large Image : Female Heat Shrink Wire Terminals Electrical Crimp Terminal 22-10 AWG

Product Details:

Place of Origin:	China
Brand Name:	KUAILI
Certification:	ROSH
Model Number:	locking spade terminal

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	consult
Packaging Details:	100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.325.819.8cm it depends on the goods.
Delivery Time:	5~30days According to the order quantity
Payment Terms:	D/A, D/P, T/T, L/C
Supply Ability:	50000 per week

Contact Now

Detailed Product Description

Product Name:	Heat Shrink Locking Spade Terminal	Material:	Copper/PE/Brass
Work Temperatur:	-55℃~125℃	Fully Shrink Temperature:	130℃
Color:	Red/blue/yellow	Cable Size:	0.5-6mm2
Highlight:	heat shrink wire connectors , heat shrink solder connectors

Heat Shrink male Wire Connectors Electrical Crimp Terminal 22-10 AWG

Applications: the heat shrinkable tubing made of polyolefin, with adhesive lining for protecting splices from water, condensation, salt, and corrosion. Providing strain relief and against vibration in rugged environments, which completely insulates and protects electrical connections. It offer long-term performance, easy installation, and a low installed cost, which is more reliable than conventional splices.

Characteristics:Automotive/truck wiring repair and fleet maintenance

Automotive/truck/RV wire harness fabrication

Commercial wiring for pumps, pools and spas

Fleet maintenance & Marine electronics

Heat Shrink Insulated Male and Female Specifications electric supplies
1,Maximum Electric Rating:150.C 600V
2,Maximum Electric Current:22-16 AWG/0.5-1.5mm2:19A;16-14AWG/1.5-2.5mm2:27A;12-10AWG/4-6mm2:48A
3,Terminal Body:Copper/brass
4,Insulation:Heat Shrink Tube
5,Plating:Tin

Item No.	Wire range mm2/Awg	Tab Size	Dimension(mm/inch)				Insulation Color
Item No.	Wire range mm2/Awg	Tab Size	C	W	L	D	Insulation Color
MDD 1.25-110(5)	0.5-1.5mm2 22-16AWG	2.8 x 0.5	1.7	2.75	30	4.8	Red
MDD 1.25-110(8)		2.8 x 0.8		2.75	30
MDD 1.25-187(5)		4.8 x 0.5		4.75	32
MDD 1.25-187(8)		4.8 x 0.8		4.75	32
MDD 1.25-250		6.4 x 0.8		6.35	32.5
MDD 2-187(5)	1.5-2.5mm2 16-14AWG	4.8 x 0.5	2.3	4.75	32	5.8	Blue
MDD 2-187(8)		4.8 x 0.8		4.75	32
MDD 2-250		6.4 x 0.8		6.35	32.5
MDD 5.5-250	4-6mm2 12-10AWG	6.4x 0.8	3.4	6.35	32.5	6.8	Yellow

Specifications
High quality Waterproof Heat Shrink Ring Terminal Connector kit

we could packing as our cusotmer inquire (qty)
