Product Name: | Heat Shrink Locking Spade Terminal | Material: | Cooper+PE |
---|---|---|---|
Work Temperatur: | -55℃~125℃ | Fully Shrink Temperature: | 130℃ |
Color: | Red | AWG: | 22-16 |
High Light: | heat shrink wire connectors,heat shrink solder connectors |

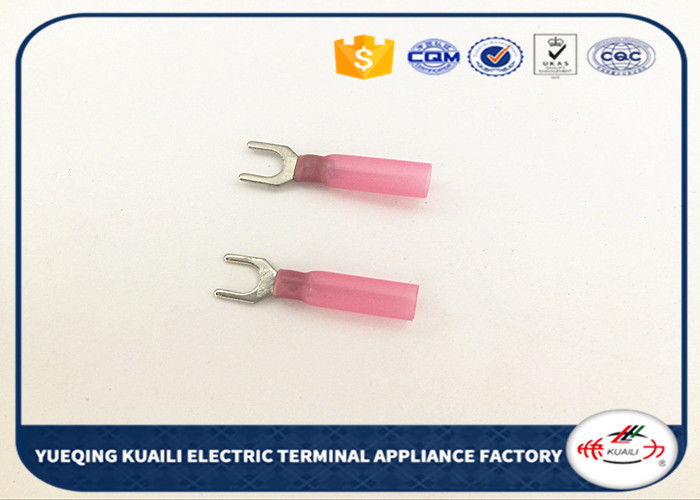

Insulated heat shrink locking spade terminal connector 22-16 AWG
Product introduction:
HS Red 22-16 AWG Heat Shrink Fork Wire Electric Crimp Waterproof Terminals is made of polyolefin compounded with hot melt adhesive, it has excellent insulation protection, waterproof and anti-corrosion performance. The middle copper tube is high pure purple copper tube with superior conductivity.
Product application:
1, Generally applied to electric wire, wire harness, cables and electric connector for protection.
2, Applied to rough environment for strengthen the fixed and anti-shock function.
Product feature:
1, Shrink ratio: 3:1
2, Color: Red, blue, yellow
3, PA hot melt adhesive has superior waterproof performance.
4, Extension performance is superior, resistance to mechanical damage.
5, Good electrical conductivity.
6, High elasticity, tube is not easy to deformation.
Operating indicators:
Initial temperature: 80 ℃
Min. Shrink temp.: 130 ℃
Working temperature: 55 ℃ ~ 125 ℃
Up to standard: Approvals
Item No. |
Wire range mm2/Awg |
Tab Size | Dimension (mm) | Insulation Color | ||||
d1 | d2 | W | L | D | ||||
HS 1.25-3 | 0.5-1.5mm2 22-16AWG |
#4 | 1.7 | 3.2 | 5.7 | 33 | 4.8 | Red |
HS 1.25-3.5 | #6 | 3.7 | 5.7 | 33 | ||||
HS 1.25-4 | #8 | 4.3 | 6.4 | 33 | ||||
HS 1.25-5 | #10 | 5.3 | 8.1 | 33 | ||||
HS 1.25-6 | 1/4 | 6.4 | 12 | 35 |
