Product Name: | Heat Shrink Locking Spade Terminal | Material: | Cooper+PE |
---|---|---|---|
Work Temperatur: | -55℃~125℃ | Fully Shrink Temperature: | 130℃ |
Color: | Blue | AWG: | 16-14 |
Highlight: | heat shrink crimp connectors,heat shrink solder connectors |

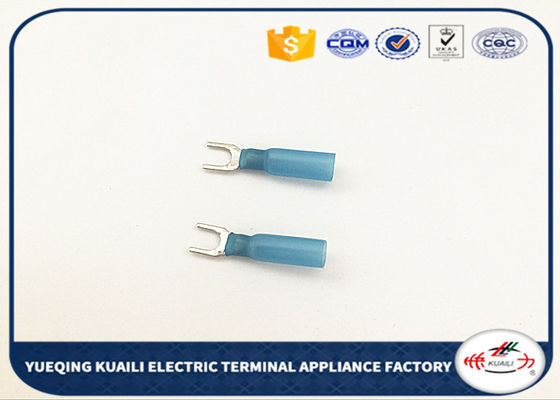

Blue 16-14 AWG Heat Shrink Fork Wire Electric Crimp Waterproof Terminals
Product application:
1, Generally applied to electric wire, wire harness, cables and electric connector for protection.
2, Applied to rough environment for strengthen the fixed and anti-shock function.
Product feature:
1, Shrink ratio: 3:1
2,Color: Red, blue, yellow
3, PA hot melt adhesive has superior waterproof performance.
4, Extension performance is superior, resistance to mechanical damage.
5, Good electrical conductivity.
6, High elasticity, tube is not easy to deformation.
Item No. | Wire range mm2/Awg |
Tab Size | Dimension (mm) | Insulation Color | ||||
d1 | d2 | W | L | D | ||||
SV 2-3 | 1.5-2.5mm2 16-14AWG |
#4 | 2.3 | 3.2 | 5.7 | 33 | 5.8 | Blue |
SVS 2-3.5 | #6 | 3.7 | 5.7 | 33 | ||||
SVS 2-4 | #8 | 4.3 | 6.4 | 33 | ||||
SVS 2-5 | #10 | 5.3 | 8.1 | 33 | ||||
SVS 2-6 | 1/4 | 6.4 | 12 | 35 |
Product Property | Test method | Test Date | |
Before aging | Tensile strength | room temperature | ≥15.9MPa |
Elongation | ≥200% | ||
After aging | Tensile strength | 159℃/7 days | ≥11.6MPa |
Elongation | ≥100% | ||
Voltage withstand and breakdown voltage ( Before aging ) | room temperature | 2500V,60sec, | |
No breakdown | |||
Voltage withstand and breakdown voltage ( After aging ) | 159℃/7 days | Withstand 2.5KV for 1minute and breakdown at least half of unaged breaddown voltage | |
Copper corrosion | pass | ||
Copper stablity | No sign of degradation Min.Elongation 100% | ||
Cold bend test | -30℃/3 hrs | No crack | |
Maximum secant modulus(2%) | - | 250MPa | |
Volume resistivity | - | ≥1014Ω-cm | |
Heat shock test | 250℃/4 hrs | No crack | |
