Name: | Adhesive-Lined Insulating Caps | Color: | Black And Transparent |
---|---|---|---|
Rated Voltage: | 600V | Tensile Strength: | 14MPa |
Start To Shrink: | 30.35mm | ||
Highlight: | heat shrink crimp connectors,heat shrink solder connectors |

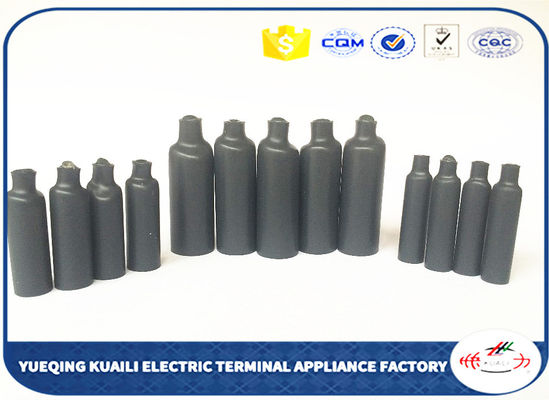

Mini Heat Shrink adhesive-lined Cap /wire end caps for cable
Applications:Specially designed to provide mechanical and environmental of stub splice in electrical harness. Clear caps allow see-through inspection. Black caps are flam-retardant.
Characteristics:4:1 shrink ratio allows a few sizes to cover a wide range of splice and component diameters.
Mechanically tough jacket provides strain relief and abrasion protection.
Thick adhesive liner forms an effective barrier against fluids and moisture and performs well at an extended temperature range.
Operating temperature range:Operating temperature:-40 ℃ to 105 ℃
Minimum shrink temperature: 100 ℃
Minimum fully recovery temperature: 135 ℃
Colors:Black (Standard), Clear(Standard)
Size selection
Always order the largest size that will shrink snugly over the component to be covered
Other cap lengths available on request.
AMC-E
|
Inside diameter(including core) | Recovered thickness | ||||
Part Number |
Standard Length as supplied (mm |
Minimum Expanded as supplied
|
Maximum Recovered After heating |
Minimum total wall After heating |
Minimum jacket wall after heating |
Minimum adhesive wall after heating |
AMC-E-1 | 30.35 | 5.72(0.225) | 1.27(0.050) | 1.20(0.047) | 0.64(0.025) | 0.56(0.022) |
AMC-E-2 | 30.35 | 7.44(0.293) | 1.65(0.065) | 1.52(.0060) | 0.76(0.030) | 0.76(0.030) |
AMC-E-3 | 40.50 | 10.85(0.427) | 2.41(0.095) | 1.91(0.075) | 0.89(0.035) | 1.37(0.054) |
AMC-D
|
|
Length |
|
Inside diameter | Recovered wall thickness | |
Part Number |
Size | Nominal overall as supplied | Minimum open barrel as supplied | Minimum expanded as supplied | Maximum recovered after heating | Total wall after heating |
AMC-D-1 | 1/8 | 22.0(0.87) | 12.7(0.50) | 3.2(0.125) | 0.58(0.023) | 1.22±0.15(0.048±0.006) |
AMC-D-2 | 3/16 | 25.4(1.00) | 15.2(0.60) | 4.8(0.187) | 1.52(0.060) | 1.57±0.20(0.062±0.008) |
AMC-D-3 | 1/4 | 28.4(1.12) | 15.2(0.60) | 6.4(0.250) | 2.03(0.080) | 1.98±0.20(0.078±0.008) |
AMC-D-4 | 3/8 | 31.8(1.25) | 18.3(0.72) | 9.5(0.375) | 2.29(0.090) | 2.08±0.25(0.082±0.010) |
AMC-D-5 | 1/2 | 38.1(1.50) | 21.6(0.85) | 12.7(0.500) | 2.29(0.090) |
2.54±0.25(0.100±0.010) |
