Product Details:
Payment & Shipping Terms:
|
Product Name: | Heat Shrink Ring Terminal | Insulation: | PE |
---|---|---|---|
Shrink Ratio: | 3:1 | Water Proof: | 100% |
Fully Shrink Temperature: | 130 ℃ | Operating Temperatures: | -55C To +125C |
High Light: | heat shrink wire connectors,heat shrink crimp connectors |

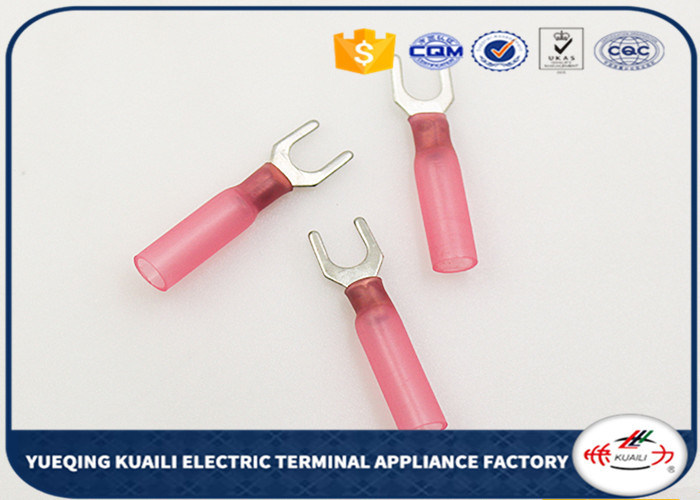

12AWG -10AWG insulated heat shrink locking spade terminal connector
Top Quality Polyolefin Heat Shrink Sleeving for General Purpose Use.
A full range of 5 colors in the most popular small sizes.
Suitable for electrical insulation, wire bundling, colour coding, mechanical protecting, wire/cable joints and repairs etc.
Good electrical, mechanical and chemical performance.
Ideal for Hobbyists and Model Makers, Electrical, Electronic, Automotive and General Purpose uses.
Our Services
1.Urlwall has undergone dynamic growth and become the largest assembly products manufacturer in network.
2.Our supply is sufficient to guarantee the customers demand.
3.Our products can be OEM, meet your special needs.
4.Our advantages and quick delivery, competitive price, high quality and long term service to out customers.
5.There is a long-term cooperation with the shipping company, can make the goods more quickly and efficiently so that can delivered safely to the designated place as guest.
6. We will provide best after sale service for the guests which try my best to meet the requirement of the guests.
Operating indicators:
Initial temperature: 80 ℃
Min. Shrink temp.: 130 ℃
Working temperature: 55 ℃ ~ 125 ℃
Up to standard: Approvals
Item No. | Wire range mm2/Awg |
Tab Size | Dimension (mm) | Insulation Color | ||||
d1 | d2 | W | L | D | ||||
HS 1.25-3 | 0.5-1.5mm2 22-16AWG |
#4 | 1.7 | 3.2 | 5.7 | 33 | 4.8 | Red |
HS 1.25-3.5 | #6 | 3.7 | 5.7 | 33 | ||||
HS 1.25-4 | #8 | 4.3 | 6.4 | 33 | ||||
HS 1.25-5 | #10 | 5.3 | 8.1 | 33 | ||||
HS 1.25-6 | 1/4 | 6.4 | 12 | 35 | ||||
HS 2-3 | 1.5-2.5mm2 16-14AWG |
#4 | 2.3 | 3.2 | 5.7 | 33 | 5.8 | Blue |
HS 2-3.5 | #6 | 3.7 | 5.7 | 33 | ||||
HS 2-4 | #8 | 4.3 | 6.4 | 33 | ||||
HS 2-5 | #10 | 5.3 | 8.1 | 33 | ||||
HS 2-6 | 1/4 | 6.4 | 12 | 35 | ||||
HS 5.5-3.5 | 4-6mm2 12-10AWG |
#6 | 3.4 | 3.7 | 8.3 | 35 | 6.8 | Yellow |
HS 5.5-4 | #8 | 4.3 | 8.3 | 35 | ||||
HS 5.5-5 | #10 | 5.3 | 9 | 35 | ||||
HS 5.5-6L | 1/4 | 6.4 | 12 | 39 |
Our brand and products are now well recognized and received in the markets of Asia, Middle East, Europe, North America & Latin America, Africa and Australia.
We strive to offer the most effective and convenient services and technical supports for customers all over the world.
