IP67 Solder Sleeve Wire Splices , Solder Grip Closed End Connector

China IP67 Solder Sleeve Wire Splices , Solder Grip Closed End Connector supplier

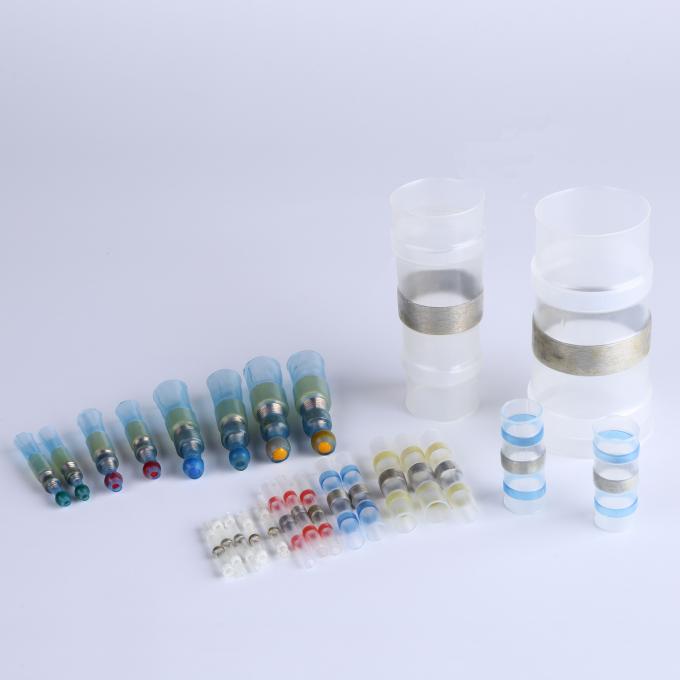

Large Image :  IP67 Solder Sleeve Wire Splices , Solder Grip Closed End Connector

Product Details:

Place of Origin: China
Brand Name: KUAILI
Certification: ROSH
Model Number: SST-SR

Payment & Shipping Terms:

Minimum Order Quantity: consult
Price: consult
Packaging Details: 100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Delivery Time: 5~30days According to the order quantity
Payment Terms: D/A, D/P, T/T, L/C
Supply Ability: 50000 per week
Contact Now
Detailed Product Description
Type: Closed End Connector Color: Green
Operating Temperature: -40 Degree ~125 Degree Minimum Shrink: 150 Degree
Waterproof Level: IP67

Solder Sleeve Wire Splices,SolderGrip Closed End Connector



Applications

  • SolderGrip heat-shrinkable solder-type closed-end connectors are designed for electrical termination of multiple-wire combinations. They provide a reliable alternative to crimping, welding, or conventional twist-on-style closed-end connectors.
  • Their unique combination of wire fixturing and controlled-soldering technology provides dependable electrical termination of multiple wire combinations.
  • SolderGrip terminators consist of a heat-shrinkable thermoplastic sleeve containing a spiral-wound copper insert. The insert is fitted with a prefluxed solder band.
  • This innovation design allows SolderGrip products to reliably terminate as many as 10 wires different sizes and types in a single device.
  • The capability of Solder Grip terminators encompasses single or multistranded.bare or tinned copper wires with low-or high temperature insulation.
  • The termination is environmentally protected and strain relieved.
  • SolderGrip splice terminators are color-coded for easy identification.



IP67 Solder Sleeve Wire Splices , Solder Grip Closed End Connector



Features and benefits

  • Soldered connection.
  • Electrical insulation.
  • Sealed for strain relief.
  • Simple installation.



Operating temperature range

  • Operating temperature: -40℃~125℃
  • Minimum shrink temperature: 150℃
  • Fully recovery temperature: 175℃
  • Starting temperature of solder melt: 138℃
  • Minimum fully recovery temperature: 160℃



Materials

  • 1 Insulation Sleeve: blue transparent and radiation cross-linked modified polyvinylidene fluoride heat shrinkable sleeve
  • 2 Solder Perform with Flux:

Solder: Type Sn43 per ANSI-J-STD-006

Flux: Type ROM1 per ANSI-J-STD-004

  • Conical Spring: Square copper wire
  • End Closure Ball: Tinted glass
  • Sealing Insert: Hot melt adhesive.
