|Name:||KLI-103D||Color:||Red / Transparent|
|Wire Range:||2.5-6mm||Key Word:||Led Connector|
|Material:||Polycarbonate||Type Of Wiring:||Side-entry Wiring|
electrical terminal connectors,
heat shrink butt connectors

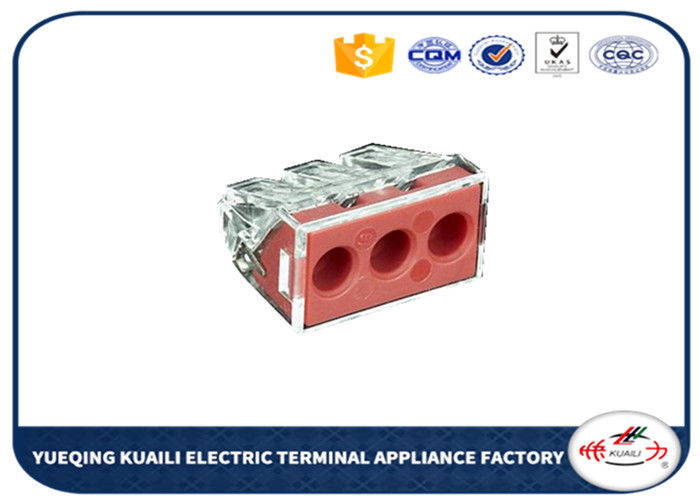

KLI-103D Electric terminal blockpush type spring speaker terminal connector,wire terminal clip
1. Application: Connector for junction box, MCB, Wire and the some place else need wiring the cable.
2. Specialty: Safety, reliability, and easy to operate without tools.
3. Standard: EN/IEC 60998-2-2
4. Certification: CE, ROHS
Strip solid conductor to 11 mm
Insert stripped solid conductor until it hits backstop.
Visual Wiring Inspection
The transparent housing shows if conductors are fully inserted; within the colored base, a clear port shows if the conductor’s strip length is correct. Conductors are correctly stripped if the clear port shows no bare conductor on the unprinted connector side. Picture above shows center conductor with exceeded strip length.
Testing via port opposite to conductor entry.
Hold conductor and alternately twist left and right, while slightly pulling the connector.
terminates the following copper conductors
KLI-103D (red / transparent)
Electrical parameters: 400V / 4KV / 41A
Size: 25.6x20.1x14.2 (L × W × H)
Applicable wire: 2.5-6mm2 (hard wire)
Stripping length: 12mm
